Introduction to Architecture

The fundamental organization of a system, embodied in its components, their relationships to each other and to the environment, and the principles governing its design and evolution
-ISO / IEC / IEEE Standard 42010

A formal description of a system, or a detailed plan of the system at component level to guide its implementation
-The OPen Group Architecture Framework, TOGAF

The structure, arrangements or configuration of system elements and their internal relationships necessary to satisfy constraints and requirements
-Dan Frey

The arrangement of the functional elements into physical blocks
-Ulrich & Eppinger

An abstract description of the entities of a system and the relationship between those entities
- Edward Crawley, et al.

The embodiment of concept, and the allocation of physical/informational function to elements of form, and definition of interfaces among the elements and with the surrounding context
- Edward Crawley, et al.

Architecture as Function-Form Mapping

Despite the varying definitions of “Architectures”, they all consist of “Function”, related by “Concept”, and maps to “Form”

Form = Elements/Objects + Structure

Form - Defined Form - Described

  • The physical/informational embodiment which exists, or has the potential to exist;

  • It is what the system “is”

  • The sum of the elements, which are segments (of the whole of) the form

  • The elements of form - smallest useful “atomic unit”

  • The structure of form - the formal relationships among the elements

    • spatial/topological structural connections

    • assembly/implementation structural connections

  • It is a system/product attribute created by the architect

  • Is created by the architect

  • Is in a solution specific domain

  • Can be decomposed into physical/informational elements -the decompositional view

  • Elements are connected at interfaces. The interfaces define the structure -the structural view

  • Is the thing that executes function

  • Is the thing that is eventually implemented (built, written, composed, manufactured, etc.)

  • Is the thing that is eventually operated (run, repaired, updated, retired, etc.)

Decompositional View

Decompositional View uses tree structure to decompose a system into sub-systems and evetually elements (in leaf nodes). It is a useful representation to place a particular system of interests (SoI) within Use Context, which defines the architectural vision that informs:

a) the core Function of the SoI;

b) the Boundaries separating the SoI from other supporting systems; and

c) the Interfaces connecting the SoI to other supporting systems.

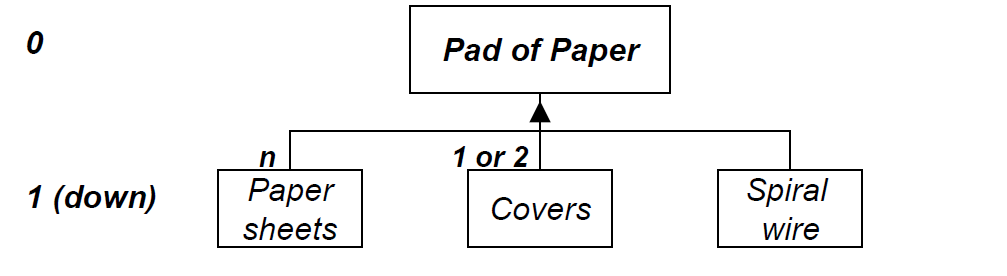

Take a look at the following decompositional view of “a pad of paper” as an example. In this simple 1-level system, the atomic elements are: paper sheets, covers, and spiral.

Figure 1. Decompositional View of a Pad of Paper

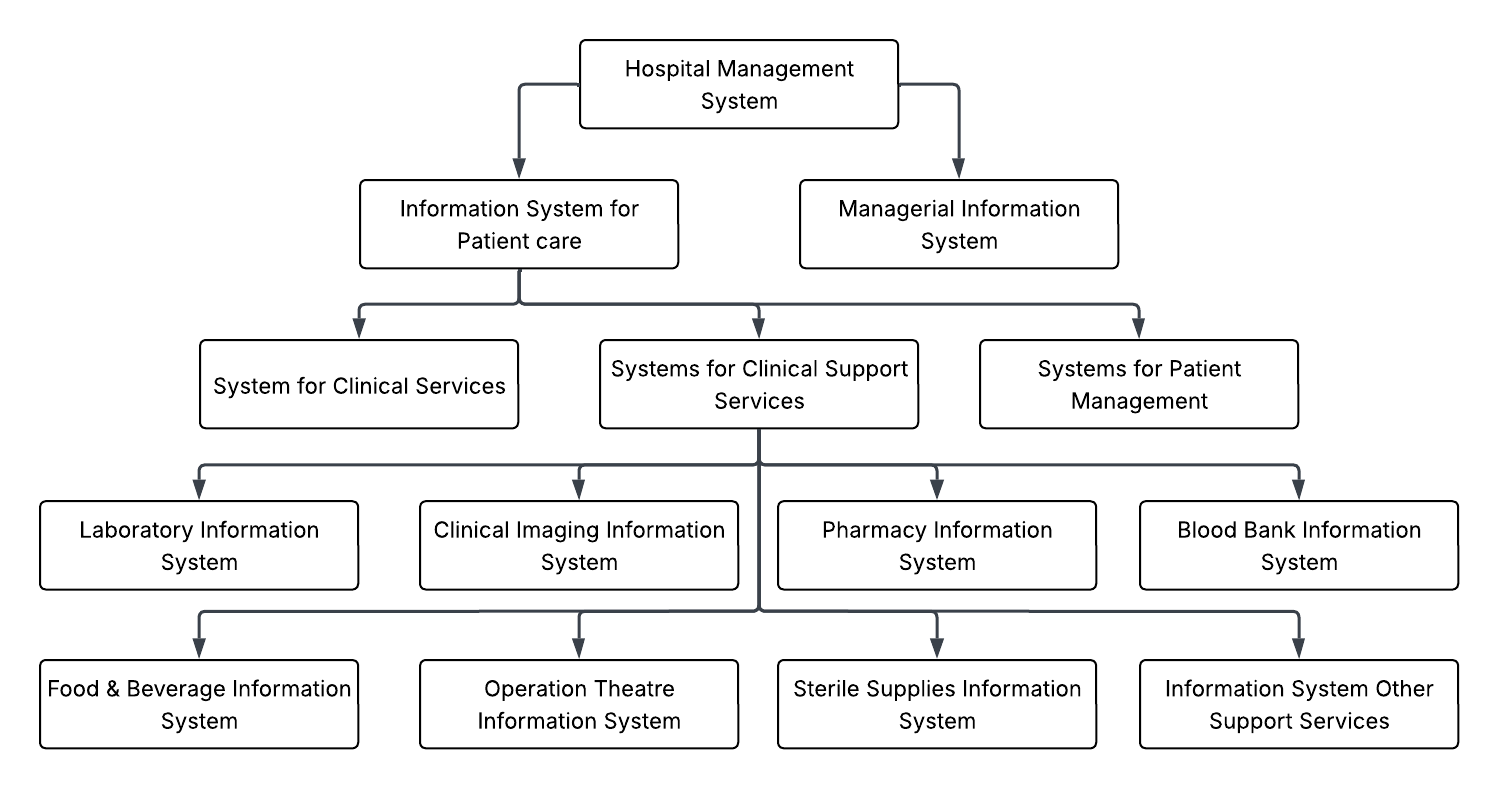

Here is a more complex decompositional view of a “hospital information system” with multiple level of sub-systems. The atomic elements in this system are: System for Clinical Services, System for Patient Management, Laboratory information system, clinical imaging information system, pharmacy information system, blood bank information system, food&beverage information system, operation theatre information system, sterile supplies information system, and information system for other support services.

Figure 2. Decompositional View of a Hospital Management System

Function = Process + Operand/Object

Function - Defined Function - Described

  • The activities, operations and transformations that cause, create or contribute to performance (i.e. meeting goals)

  • The actions for which a thing exists or is employed

  • Is a product/system attribute

  • System defined as: “A set of interrelated elements that perform a function, whose functionality is greater than the sum of the parts”
  • Is conceived by the architect
  • Must be conceived so that goals can be achieved
  • Is what the system eventually does, the activities and transformations which emergeas sub-function aggregate (i.e., Emergence)
  • Should initially be stated in solution neutral language

Structural View

The structural view represents the static, enduring aspects of a system—its components, relationships, and organization—independent of how those components behave over time. There are two typical representations:

  • Graphical representation: Object-Process Modeling (OPM). The decompositional view introduced above is a special type of OPM.

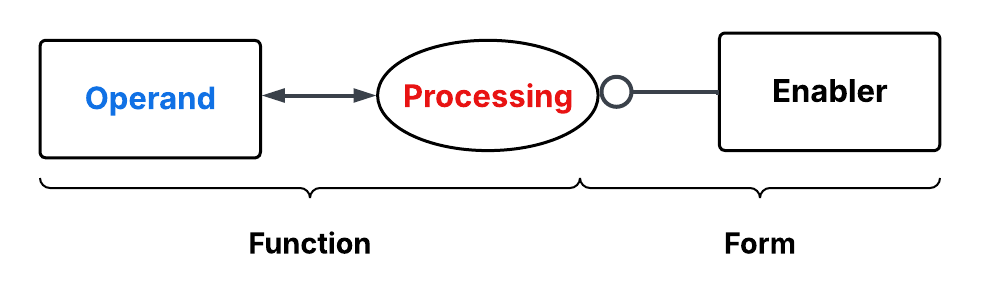

Figure 3. Basic Schematic of OPM
Component Definition

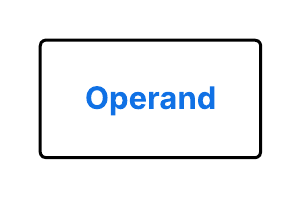

is the object which is acted upon by the process, which may be created, destroyed, or altered. The Operand that is associated with the delivered value of the system is called Value-Related Operand

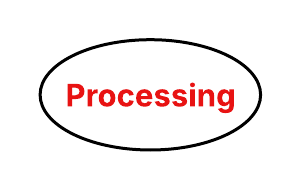

is the pattern of transformation applied to one or more objects. A process relies on at least one object in the pre-process set and transforms at least one object in the pre-process set

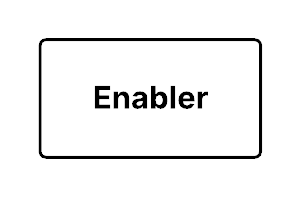

is an object that must be present for that process to occur, but does not change as a result of the occurrence of the processis an object that must be present for that process to occur, but does not change as a result of the occurrence of the process
Change link: Process changes Operand. For example, “transporting” will change the state of a “person” from “here” to “there”
Affect link: Process affects Operand. For example, “transporting” will affect the state of a “person”
Create link: Process yields or creates Operand. For example, “transporting” will yield or create “entropy”
Consume link: Process consumes or destroys Operand. For example, “transporting” will consume “energy”
Agent link: Operand is an agent of Process. For example, “operator” is the agent for “transporting”
Enabler link: Operand is the enabler of Process. For example, “skakeboard” enables “transporting”
Conditional link: Process occurs if Operand is in certain state. For example, “purchasing” can only occur if you have enough “money”
Invoke link: Process A invokes Process B directly. For example, “purchasing” ticket will invoke “transporting”
  • List representation: Design Structure Matrix (DSM), or Decision Structure Matrix or Dependency Structure Matrix, is a “N-squared” matrix representation that is used to map the connections between one element of a system an others. It’s called N-Squared because it is contructed with N rows and N columns, where N is the number of elements. The normal convention, used in this text, is that one reads down the column to the relationship to the row heading, and that things “flow” from column heading to row heading. The types of relationships shown in a DSM can vary, including but not limited to spatial/topological and connectivity relationships.

Figure 4. A schematic of DSM.

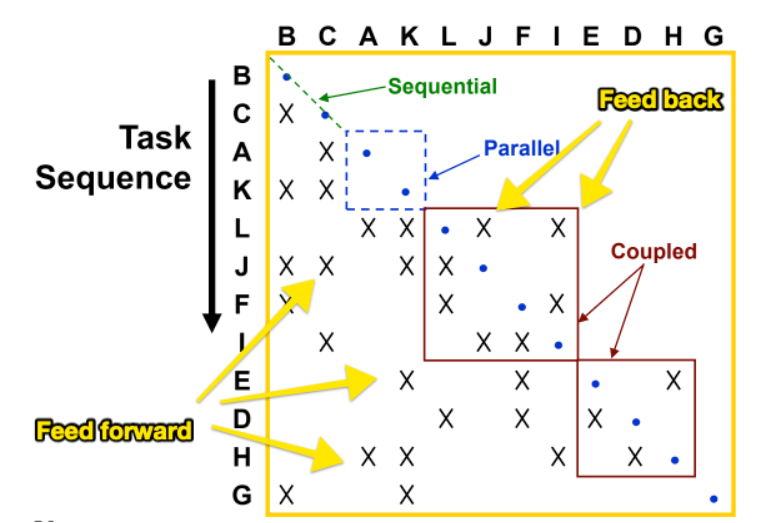

In Figure 4, we present a schematic of the DSM with tasks (A, B, C, …) arranged in temporal order. Marks located below the diagonal line represent forward information transfer to subsequent, dependent tasks, whereas marks above the diagonal denote cyclical loops where information may flow backward to earlier tasks. Such cyclic dependencies often signal the potential for rework, feedback iterations, or coordinated bottlenecks within the process. The “X” marks can be further specified as 1 (strong dependency), 2 (medium dependency), 3 (low dependency)

Design vs. Reverse Engineering

  • In (conventional, top down) design, you know the functions (and presumably the goals) and try to create the form to deliver the function
  • In reverse engineering, you know the form, and are trying to infer the function (and presumably eventually the goals)
  • In bottom up design, you build elements and discover what emerges as they come together
  • In design knowledge capture, you record the function along with the design of form

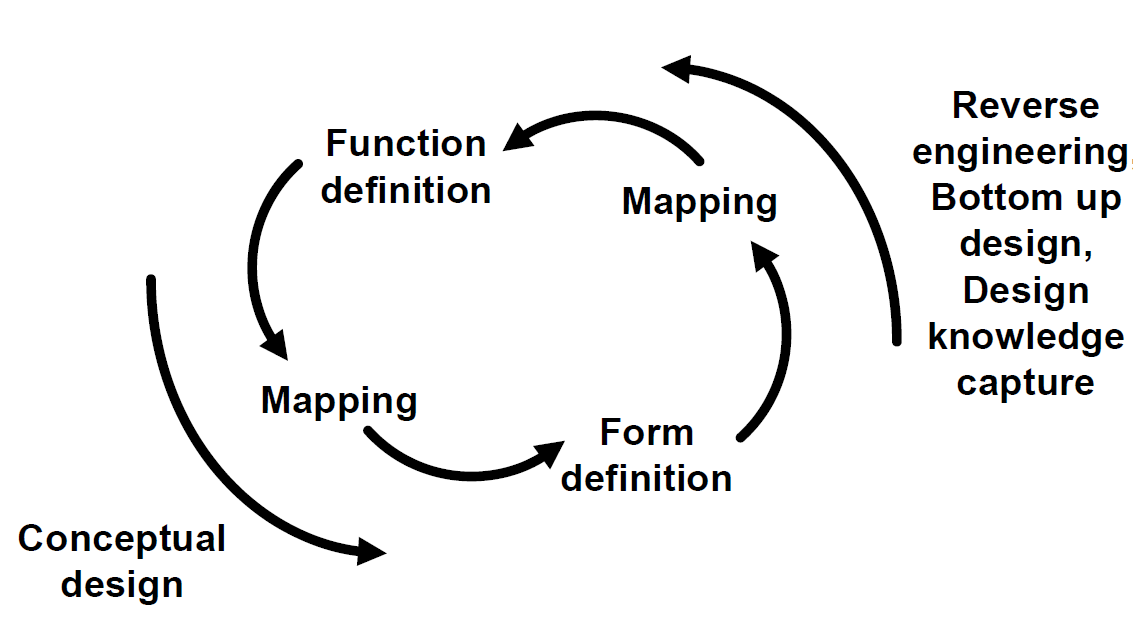

Figure 5. Form-Function Sequence

Types of “Vertical” Thinking

When examining complex systems, there are several ways of thinking through them:

  • Top down: start at the “highest”level and reason down through the system

  • Bottom up: start at a lower level and reason up

  • Middle out: start at a middle level, and reason toward the top and bottom

  • Outer in: start at a the top and bottom, and reason toward the middle

Architect and Architecting

An architect works by applying:

  • Relevant modes of thought, including creative and critical thinking

  • The approaches of architecting, including holism, reductionism, heuristic, agile, ecosystem, etc.

    • Holism: emphasizes the design of systems based on the interrelationships, interactions, and emergent properties of all elements considered as a whole, rather than optimizing isolated components, with the objective of ensuring systemic coherence, resilience, and alignment with the broader environment.

    • Reductionism: decomposes a system into its constituent parts for analysis and optimization, based on the assumption that the behavior and performance of the whole system can be explained and engineered through the aggregation of its individual components.

    • Heuristic: or pattern-based approach, which applies established architectural patterns, reference models, and heuristics as reusable design abstractions, with the intent of leveraging proven structural solutions to recurrent problems while reducing design risk and accelerating development.

    • Agile: or incremental approach, which is an iterative and adaptive method that incrementally evolves architectural structures in synchrony with system development cycles, emphasizing responsiveness to emergent requirements, stakeholder feedback, and evolving environmental conditions.

    • Ecosystem: or service-dominant approach, which is to structure systems around modular services and value exchanges, prioritizing interoperability, composability, and ecosystem growth through well-defined interfaces, contracts, and governance mechanisms.

  • The principles, processes and tools of architecting

    • Principles: are the underlying and long enduring fundamentals that are always (or almost always) valid.

    • Methods: are the organization of approaches and tasks to achieve a concrete end, which should be solidly grounded on principles, and which are usually or often applicable.

    • Tools: are the contemporary ways to facilitate process, and sometimes applicable

  • And a lot of wisdom and experience!

Three Roles of the Architect

  • Reduce ambiguity: to incorporate strategy and technology insertion by defining the context and boundaries of the system

  • Employ creativity: to create the concept for the system, managing in the spectrum of solution neutral thinking

  • Management complexity: so that the system is comprehensible to all during its design, implementation, and evolution

Types of Architectures

There are many different types of architectures, depending on the context—ranging from computing and engineering to organizations, physical products and even biology. In this class, we will expand on the following types of architecture as they are more relevant within the context of EIA.

  • Enterprise Architecture (EA): The purpose of Enterprise Architecture is to optimize across the enterprise the often fragmented legacy of processes (both manual and automated) into an integrated environment that is responsive to change and supportive of the delivery of the business strategy.

  • Information Architecture (IA): is the structural design of information environments that specifies the organization, labeling, navigation, and governance of data and information resources, with the aim of enabling findability, usability, and effective decision-making across systems.

  • System Architecture (SyA): is the conceptual and physical arrangement of system components, their interactions, and governing principles, designed to satisfy functional requirements, quality attributes, and constraints in the realization of a complex system.

  • Cloud Architecture (CA): is the structural design of computing systems that leverages cloud-based services, models, and infrastructures (e.g., IaaS, PaaS, SaaS; public, private, hybrid) to achieve scalability, elasticity, resilience, and cost-efficiency in delivering IT capabilities.

  • Software Architecture (SwA): is the high-level design of a software system that defines its structural elements, the relationships and interactions among those elements, and the guiding principles that ensure the system meets functional requirements and quality attributes such as performance, security, and maintainability.

Styles of Architecture

There are in general five architectural styles: Centralized, Decentralized, Federated, Distributed, and Hybrid.

  • Centralized: A centralized architecture is a structural style in which control, processing, and data management are concentrated within a single primary node or core subsystem, with peripheral elements functioning mainly as clients dependent on this core for services.

  • Decentralized: A decentralized architecture is an architectural style in which multiple autonomous nodes perform independent control, processing, and decision-making, without reliance on a single central authority, such that each node governs its own resources and interactions, thereby promoting autonomy, robustness, and localized optimization.

  • Federated: A federated architecture is an architectural style in which multiple autonomous nodes or organizations interoperate through shared standards, protocols, and governance agreements, enabling collaborative data and service exchange while preserving local authority and independent control over resources.

  • Distributed: A distributed architecture is an architectural style in which computational and data-management tasks are partitioned across multiple interconnected nodes that coordinate through communication protocols to function as a single logical system, thereby achieving scalability, resilience, and transparency of distribution.

  • Hybrid: A hybrid architecture is a composite structural style that integrates elements of centralized, decentralized, and distributed models, typically centralizing critical components while allowing distributed or decentralized autonomy in selected functions, to balance control, scalability, and resilience under contextual constraints.

Table 1. Comparison of Architectural Styles
Aspect Centralized Decentralized Distributed Federated Hybrid
Control Central hub authority. Fully local authority per node. Shared control under system-wide governance. Local authority + shared agreements. Mixed (central for some functions, local for others).
Coordination Top-down, fully centralized. None or ad hoc between nodes. Protocol-driven, inherent in design. Standards-driven, negotiated agreements. Context-dependent; combines multiple coordination modes.
System Behavior Appears as one system, controlled centrally. Each node behaves independently. Appears as one logical system to users, coordinated internally. Appears as many systems cooperating, each autonomous but interoperable. Varies by design — some centralized, some federated, some distributed.
Homogeneity Homogeneous by design. Heterogeneous — each node can differ. Typically homogeneous (nodes use same software/protocols). Heterogeneous — nodes may use different tech stacks. Mixed — some subsystems homogeneous, others heterogeneous.
Interoperability Not needed (everything is inside one system). Not guaranteed; integration is ad hoc. Built-in by design. Achieved through agreed standards (e.g., FHIR, SAML, OAuth). Selective; interoperability mechanisms applied where needed.
Failure Impact Failure of the hub can bring down the whole system. Failure isolated to one node, others unaffected. Node failures can impact system but mitigated by redundancy. Failure isolated to one member; federation continues. Depends on which part fails; mitigated by redundancy in design.
Strengths Simplicity, consistency, easy governance. Robust autonomy, local optimization, resilience to central failure. Scalability, performance, transparency to users. Autonomy + interoperability, scales across organizations. Balances tradeoffs; adaptable to diverse requirements.
Weaknesses Single point of failure, poor scalability. Fragmentation, duplication, lack of global view. Synchronization complexity, latency, consistency tradeoffs. Governance complexity, requires trust and alignment. Added complexity, governance challenges, risk of unclear

Architectural Decisions

  • Architectural decisions are the subset of design decisions that are most impactful:

    • they relate to form-function mapping,
    • they determine the performance envelope,
    • they encode the key trade-offs
    • then often strongly determine cost

  • Architectural decisions lead to architectures that are fundamentally different from each other

  • Architecture can be an explicit choice

  • Architectural decisions can be identified and sequenced

  • The system architect must help make the complex system less complicated

Programmed vs. Non-programmed decisions

  • Programmed decisions: routine, structured, and repetitive decisions made by applying established rules, procedures, or standard operating policies

  • Non-programmed decisions: unique, unstructured, and non-routine decisions that require judgment, creativity, or problem-solving because no pre-established procedures exist.

4-Quadrant Decision Matrix

  • Sensitivity: does this decision strongly influence metrics (e.g., value, profit, efficiency)?

  • Connectivity: would substantial rework be required to change this decision? Could we make this decision downstream without regards for other decisions?

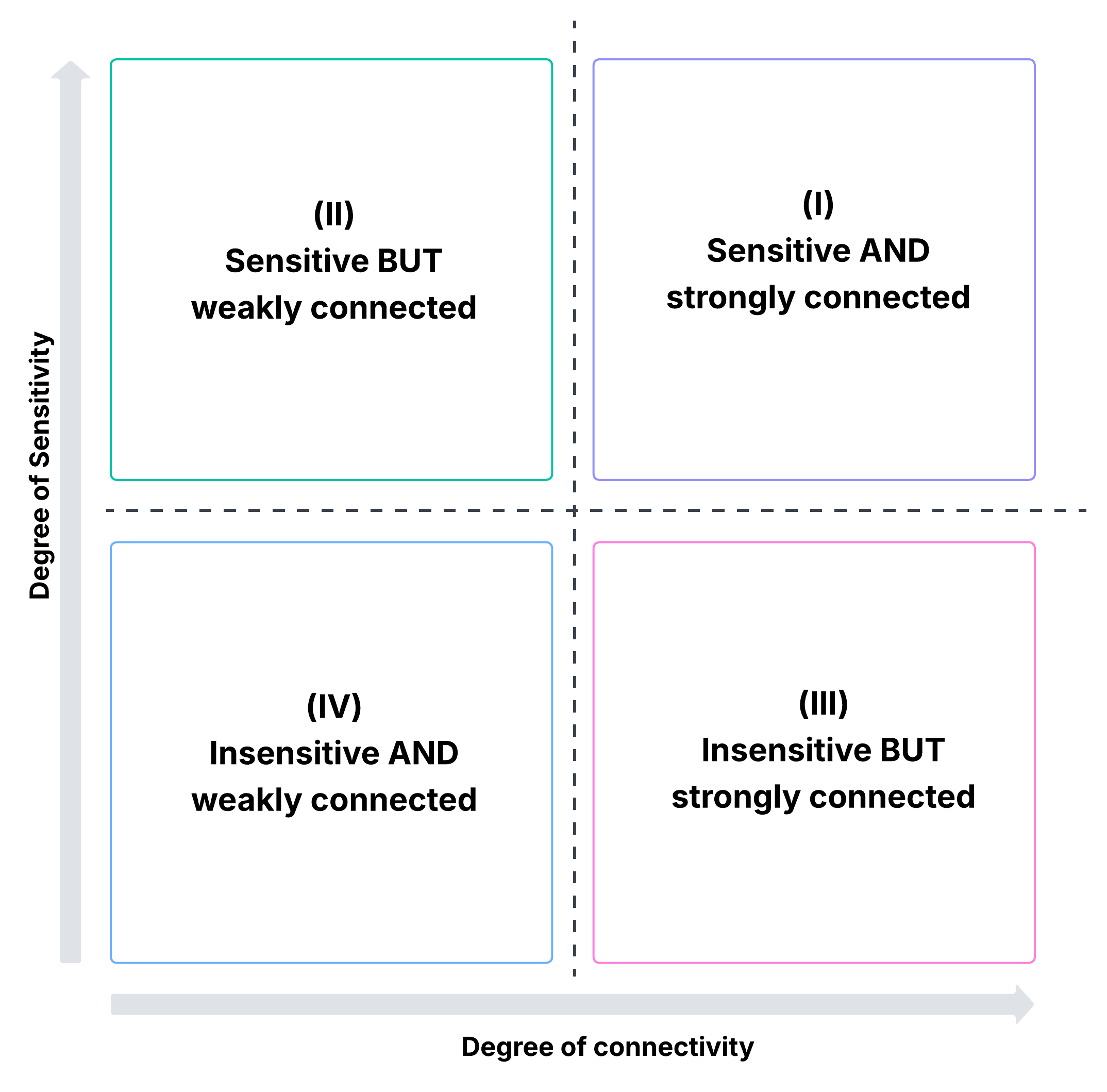

Figure 6. Architectural Decision Matrix

Six Patterns of Architectural Decisions

Pattern Description
DECISION-OPTION A group of decisions where each decision has its own discrete set of options.
DOWN-SELECTING A group of binary decisions representing a subset from a set of candidate entities.
ASSIGNING Given two different sets of entities, a group of decisions assigning each element from one set to any subset of entities from the other set.
PARTITIONING A group of decisions representing a partitioning of a set of entities into subsets that are mutually exclusive and exhaustive.
PERMUTING A group of decisions representing a one-to-one mapping between a set of entities and a set of positions.
CONNECTING Given a set of entities that are nodes in a graph, a group of decisions representing the connections between those nodes.
